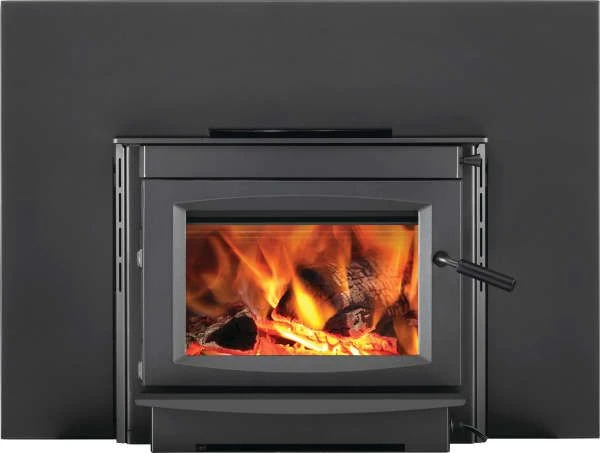

Name: Napoleon S-Series Wood Burning Fireplace Insert - S20I
SKU: S20I
Availability: InStock

Manufacturer: Napoleon
Part Number: S20I
eFireplaceStore Item Number: NPL-S20I
UPC: 629169075058

Features

Ceramic glass door
Rolled cast iron door frame
Includes dual rotary blower
Hidden door hinges and hardware
Refractory brick lined firebox
Exceeds EPA 2020 emissions requirements
Features up to eight hours of burn time
Installs into existing fireplace openings

Technical Specifications

Recommended Heating Area: 550-1,800 Square Feet
Firebox Volume: 1.9 Cubic Feet
Maximum Log Length: 20″
Flue Size: 6″
Viewing Area: 153 square inches
Steel Top Thickness: 3/16″
Steel Body Thickness: 3/16″
Overall Dimensions: 25 3/8″ W x 20 1/2″ H x 26 1/2″ D
Required Fireplace Minimum Width: 25 7/8″
Required Fireplace Minimum Height: 22″
Required Fireplace Minimum Depth: 14″
Hourly Emissions: 2.25 Grams
Max BTU Output: 54,000 BTU/h
72% efficient based on an EPA-specified test method (CSA B 415-10 stack loss method). Actual efficiency will vary.

*Venting Requirements: This unit requires venting pipe with an inner diameter of 6 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

Looking for a heating solution? Napoleon has the answer. This Napoleon S20I Wood Burning Fireplace Insert is elegant and works with any style. Efficient heating and modern design, that’s the Napoleon way.
